Multisec Engineered Lifting Systems

Multisec Modular Spreader Beams

Standard Range up to 250t with spans up to 22.5m

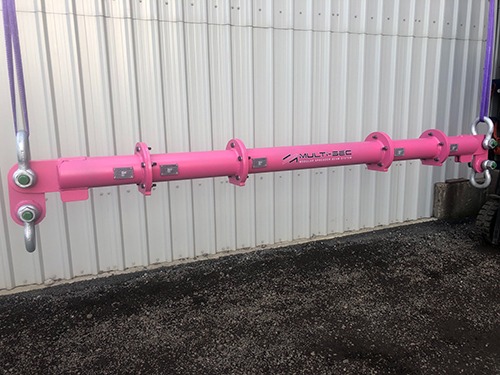

Multisec Modular Spreader lifting Beams are the perfect solution for a variety of lifting applications. The basic configuration includes two slings attached to shackles at each end of the beam, which connects to a lifting device, such as a hoist or crane.

Our off-the-shelf range offers versatile and cost-effective lifting solutions with a wide variety of spans, configurations, and capacities to suit your specific lifting requirements. Our Standard Modular Spreader lifting Beams are capable of lifting up to 250 tonnes, with spans of up to 22.5 metres.

With our modular design, we can customise our lifting beams to fit your specific needs, whether you require a longer or shorter span, or a higher or lower lifting capacity.  We also offer bespoke solutions for lifting applications that require sizes outside of the standard range.

The entire range of Multisec Lifting Systems are proof load tested in-house prior to despatch and supplied complete with relevant certification.

Make An Enquiry

Contact our team today to learn how we can provide the perfect lifting solution for your next project.

Standard Off-the-Shelf Range of Modular Spreader Beams

Up to 13t at 5.75m
Up to 7.75m at lower capacity
View Details

Up to 25t at 7.25m
Up to 9.25m at lower capacity
View Details

Up to 50t at 9.75m
Up to 12m at lower capacity
View Details

Up to 75t at 12m
Up to 15m at lower capacity
View Details

Up to 110t at 14.5m
Up to 18m at lower capacity
View details

Up to 170t at 14.5m
Up to 19.5m at lower capacity
View Details

Up to 250t at 15.5m
Up to 22m at lower capacity
View Details

Modular Spreader Beams & Lifting Beams FAQ

A modular spreader beam and lifting beam are devices used in material handling and lifting applications. They are typically used in situations where heavy loads need to be lifted, moved, or positioned.

Modular spreader beams and lifting beams are designed to distribute the weight of a load evenly across the beam. They consist of a main beam with two or more attachment points, known as pick points, where the load is attached. The load is then lifted using a crane or other lifting equipment.

Modular spreader beams and lifting beams offer several benefits over traditional lifting methods. They are designed to distribute the weight of a load evenly, reducing the risk of damage or accidents. They can also be customised to fit the specific needs of a particular application and can be easily adjusted to accommodate different load sizes and shapes.

Modular spreader beams and lifting beams are used in a variety of applications, including construction, manufacturing, and shipping. They are commonly used to lift heavy equipment, machinery, and structural components.

When selecting a modular spreader beam or lifting beam, you should consider the weight and size of the load, the number of pick points required, and the maximum load capacity of the beam. You should also consider the material and construction of the beam to ensure it is suitable for your application.

It is important to follow all safety guidelines and regulations when using a modular spreader beam or lifting beam. This includes ensuring that the beam is properly secured and that the load is properly balanced and attached. Regular inspections and maintenance should also be performed to ensure the beam is in good working condition.

At Multisec, we are committed to providing high-quality equipment, exceptional customer service, and competitive pricing. We work closely with our customers to understand their needs and provide solutions that meet their specific requirements.

Additionally, our experienced team of engineers and technicians have the expertise to provide customised solutions and support for even the most complex lifting operations.

Purchasing a modular spreader beam from Multisec is a simple and straightforward process. Browse our selection of modular spreader beams to find the one that meets your lifting requirements.

Once you have identified the beam you need, contact our sales team directly. Our team will work with you to provide a customised quote that includes the cost of the beam and any additional accessories or modifications needed to meet your specific lifting needs.

Hire Our Beams

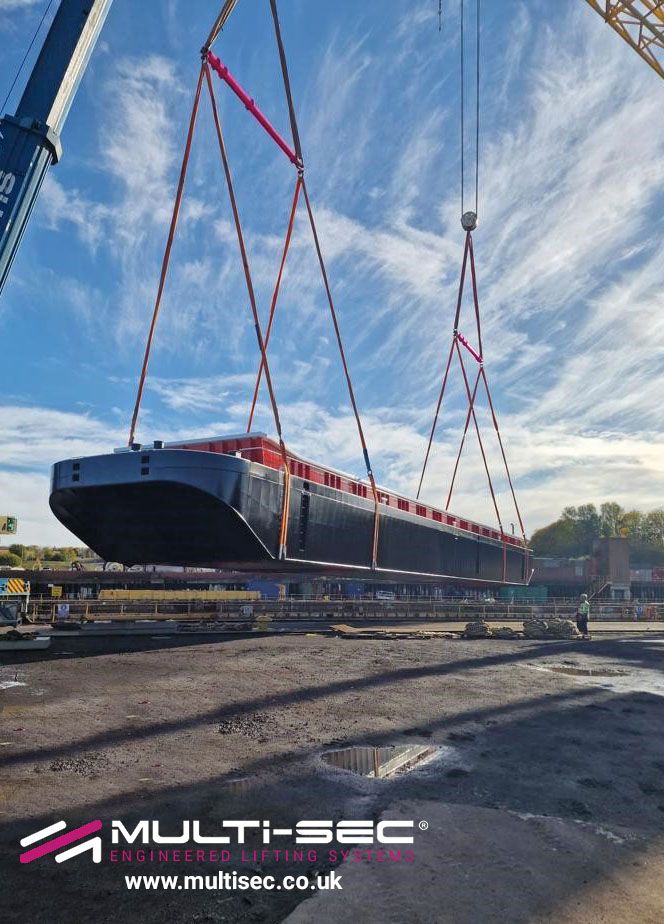

Multisec Multi 110 systems on hire

Our MultiSec Modular Spreader lifting Beam range is not only available for sale, but also for hire from our extensive hire fleet.  We understand that not every lifting operation requires a permanent purchase, which is why we offer flexible and cost-effective hire options to suit your specific needs.

Why Choose Multisec Modular Spreader Beams?


Cost effective – Only a small number of components are required to make up a variety of spans and configurations.

Versatile  MultiSec can be configured into virtually any lifting rig to enable the most complicated of structures to be lifted.

Storage – MultiSec can be dismantled and stored in a relatively small area saving valuable space.

Handling – MultiSec are able to be handled more easily than conventional fixed spreader beams.

Transport – MultiSec can be shipped in component form, therefore a smaller, more cost effective vehicle can be used for transportation.

Designed and. manufactured in accordance with:

  • BS EN 13155:2003+A2:2009 Cranes – Safety – Non-fixed load lifting attachments
  • BS EN 1993-1-1:2005 Eurocode 3
  • EC Machinery Directive 2006/42/EC
  • LOLER:1998 (Lifting Operations and Lifting Equipment Regulations
  • PUWER: 1998 (Provision and Use of Work Equipment Regulations)
  • DNV-GL approval can be arranged upon request.

If you need help or have any questions, please do not hesitate to contact our sales team for guidance.
This product is designed and manufactured in the United Kingdom.
