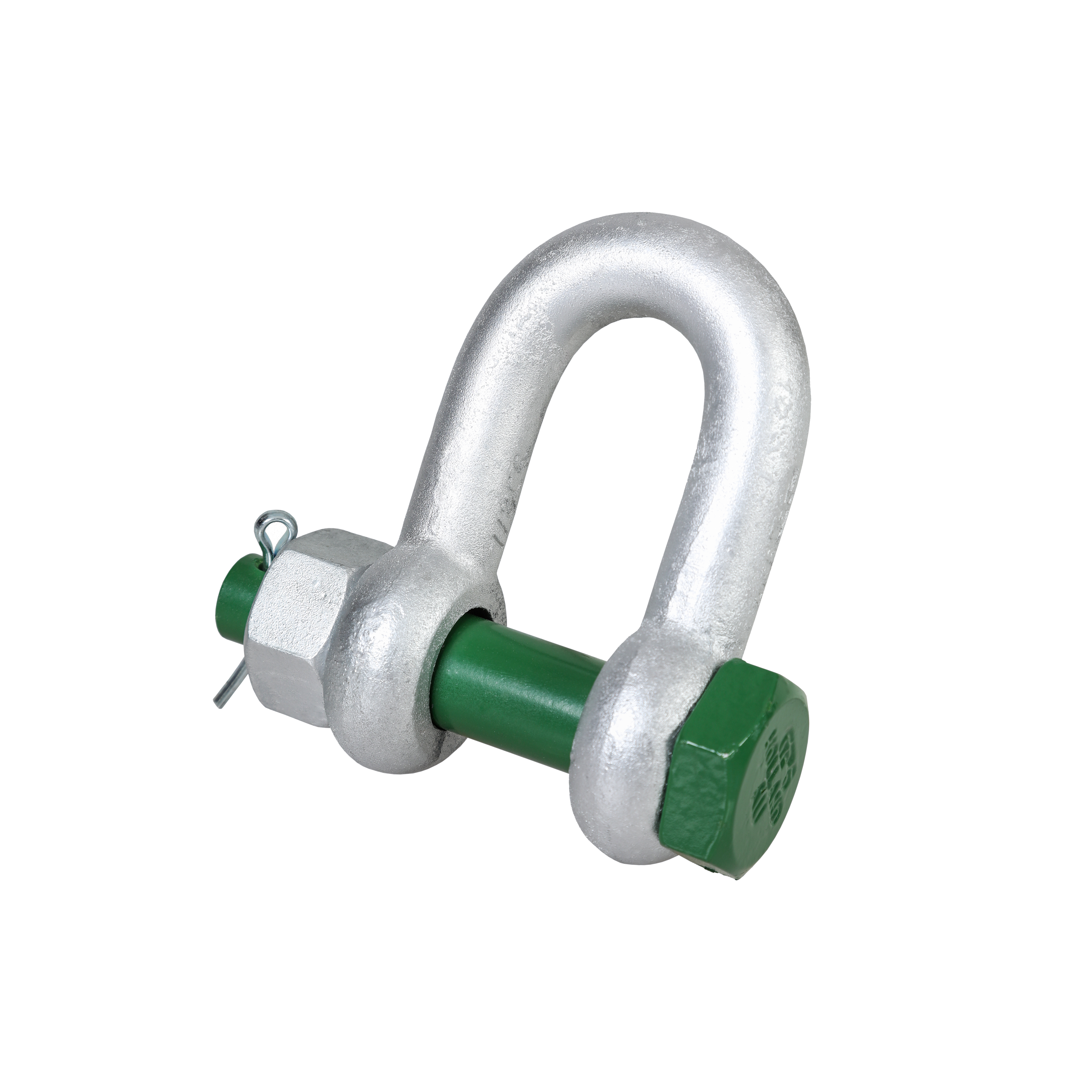

G-4153 Green Pin Dee Shackle BN

MultiSec’s Safety Bolt Shackles are used for long-term or permanent applications or where the load may slide on the pin causing rotation of the pin.

Material – Body & pin high tensile steel, Grade 6, quenched and tempered
Safety Factor – MBL equals 6 x WLL
Standard – EN 13889 and meets performance of US Fed. Spec. RR-C-271 Type IVA Class 2, Grade A
Finish – Hot dipped galvanised
Temperature Range – -Minus 20oC up to 200oC
Certificates – Test Certificate is supplied as standard, also upon request a cert of basic raw material manufacturer certificate and/or EC declaration of conformity can be supplied.

It is vital that the correct Shackle is chosen and all entities are considered.
Please refer to the drawing below for product dimensions, and then select your shackle using the table.

working load limit (WLL)	bow dia	pin dia	eye dia	width eye	width inside	length inside	length	length bolt	width nut	weight
(tonnes)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	I (mm)	Kg each
2	13.5	16	34	13	22	43	81	82	13	0.39
3.25	16	19	40	16	27	51	97	98	17	0.67
4.75	19	22	46	19	31	59	112	114	19	1.08
6.5	22	25	52	22	36	73	134	130	22	1.66
8.5	25	28	59	25	43	85	154	150	25	2.46
9.5	28	32	66	28	47	90	167	166	27	3.40
12	32	35	72	32	51	94	180	178	30	4.51
13.5	35	38	80	35	57	115	209	197	33	6.10
17	38	42	88	38	60	127	230	202	19	7.63
25	45	50	103	45	74	149	271	249	23	13.25
35	50	57	111	50	83	171	305	269	26	18.53
42.5	57	65	130	57	95	190	345	301	29	25.94
55	65	70	145	65	105	203	376	330	32	35.33
85	75	83	162	73	127	229	427	380	39	52.97
